LSOT00950A(SILVER)/LSOT00950B(BLACK) INSTRUCTION INSTALLATION STEPS



Thank you for your purchase. With the installation of this CARAMORE shield, we hope that will help prevent any further catalytic converter theft. The included hardware kit will help further secure your catalytic converter and deter thieves.

Compatibility:

Toyota Tacoma 2005-2015 (4WD Only)

Package Contents:



(1) Passenger Side Rail

(1) Driver Side Rail

(1) Aluminum cat shield                 (3) M10 Oversized Stainless Washers

(3) Square Plate Washer

(4) M8 General use washers

(4) Stainless Internal Tooth Lock Washer

(12) M8 Tamper Proof Security Bolt

(3) M10 Zinc Nuts(non-locking)

(3) M10 Nylon Insert Locknut

(4) Rivet Nut

(1) DIY install bolt M8×50Hex

(2) M10×80 Button Head Hex

(1) M10×100 Button Head Hex

(1) Blue Thread Lock

(1) H5 Security Bit

(1) H6 Security Bit





Install Instructions

STEP 1:

Install side shields onto main shield. The tallest portion of the side shield goes towards the front of the vehicle(narrow end ).

Use the blue thread lock on the M8 Security Bolt and thread them into the holes. After all 8 are installed tighten the them completely with the provided security bit.

STEP 2:

Hold the shield up and using the M10×80 bolts insert them through the rear outer holes. Place a square plate washer on the top of the bolt and install the temporary NON-Locking nut. Install the front M10×100 bolt, square plate washer and non-locking nut. Center the shield and check spacing gaps around the sides. Once the spaces are correct, tighten down the bolts by holding the top with a wrench and using a 6mm hex key from the bottom.

STEP 3:

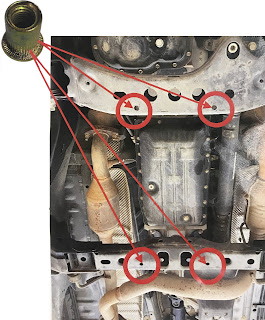

Using a (7/16” or 11mm drill bit )and the shield for a guide drill the 4 holes then drop the shield down to install the rivet nuts.

The rivet nuts can be installed using a rivet nut gun installer. This tool can be found on Amazon for about＄60 - If you are doing many of these it is a good investment to make the process go by faster.

STEP 4:

There are a few ways to install the rivet nut inserts.

1. You can use a “riv-nut” install tool and can rents or purchase the tool.

2. Have a professional install it for you.

3. You can use the “no special tools” way. You will need two M10 stainless washers, 2 non-locking M10 nuts, and the install bolt.

STEP 5:

Install the M10×80 and the M10×100 bolts into the shield. Use the square plate washer on top and M10 stainless on the bottom. Use the supplied lock-nut and thread it until snug. Leave the shield slightly loose until all remaining bolts are started.

Using the blue thread locker install (4) M8 security bolts with a M8 general use washer and stainless internal toothed washer. Thread each into the holes first then tighten them all down.

Tighten the remaining bolts using a wrench on the top nut and a 6mm hex key. Ensure all bolts are good and tight.

How to install our product LSOT00760A Brand New Catalytic Converter Protection Shield Fits 2004-2009 Toyota Prius l4 1.5L



Thank you for your purchase. With the installation of this CARAMORE          shield,we hope that you will help prevent any further catalytic converter theft.The included hardware kit will help further secure your customers’ catalytic converter and deter thieves.

Package Contents:

• (8) Rivets
• (6) Security Screws
• (2) Self Tapping Screws
• (1) Aluminum Security Plate

STEP 1: Locate and remove the front plastic slash shield 10mm nuts shown in red.

The CARAMORE plate is mounted on the front 3factory studs and the OEM splash guard is installed over the plate. This allows for the plate to be centered and aligned with the frame rails on each side. These nuts are kept loose until all other fasteners are installed. These (3)10mm nuts should be tightened last.

STEP 2: The provided self-tapping screws to hold the plate in place while drilling the rivet holes. Place one security screw in any of the red outlined areas. These areas will house the security screws once the other holes for the rivets have been drilled.

*We highly recommend using a clearance adjustment tool when installing the shield. A wood 2×4 or equivalent should be placed between the cat and the shield prior to installing any permanent hardware. This will ensure the shield does not rattle.

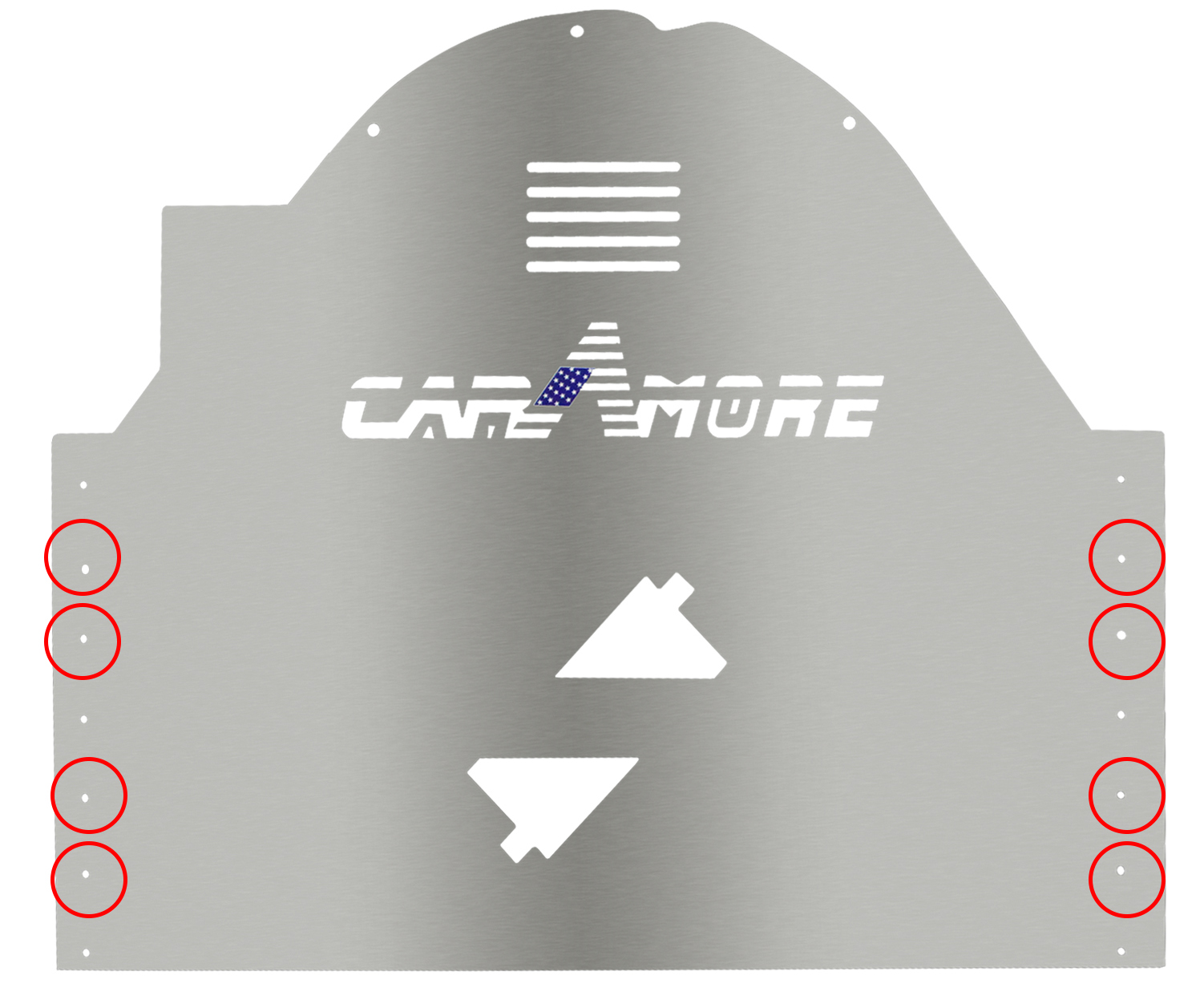

STEP 3: Alternating sides,drill out the remaining holes. You can use the self tapping screws or a 3/16＂drill bit. Once drilled, alternate sides again and install the rivets highlighted the red areas.

STEP 4: Install the security screws in the center and outer holes of the shield.

STEP 5:

Replace the front splash shield and tighter down the (3)10mm nuts. Remove the clearance tool from between the cat and shield.

Thanks for reading!

2016-2021 Toyota Prius Catalytic Converter Cat Shield Installation instruction



Thank you for your purchase. With the installation of this CARAMORE plate, we hope that you will help prevent any further catalytic converter theft. The included hardware kit will help further secure your customers’ catalytic converter and deter thieves.

Compatibility:

Toyota Prius 2016-2021 Catalytic Converter Security/ Protection Shield

Package Contents:

(1)   - aluminum security plate

(4) - 3/16 inch rivets

(4) - security screws

(2) - self-tapping screws

Professional tip: Check to see if you have the required aluminum mounting bars. You may have zero,one,two,or three. You will need a minimum of two support braces to complete this installation. If you have no support braces please order them from Toyota using part number 57533-47030

Install Instructions

STEP 1:

Ensure there are two support bars in the forward-most positions.

Hold the CARAMORE shield up and install two self-tapping screws in opposing corners as shown on the picture.

STEP 2:

Once the CARAMORE shield is stable,proceed to drill out the inner holes for the rivets.Install the rivets using the 1/2” rivet gun

STEP 3:

Install the security screws in the corners of the CARAMORE Shield. You can use the self-tapping screws to make the holes for the security screws,if you do not have a 5/6” drill bit. Install security screws and you are done.

2010-2015 Toyota Prius 1.8L Catalytic Converter Protection Shield Installation



Thank you for your purchase. With the installation of this CARAMORE          shield,we hope that you will help prevent any further catalytic converter theft.The included hardware kit will help further secure your customers’ catalytic converter and deter thieves.

Package Contents:

• (1)-aluminum front shield
• (1)-aluminum rear shield
• (4)-1/4 inch rivets front (larger)
• (4)-3/16 inch rivets use for rear shield(standard length)
• (3)-3/16 inch rivets use with spacers(longer length)
• (3)-Nylon Spacers
• (1)-Anti-Rattle Tape
• (2)-Screw

STEP 1: Start by removing the 4 front factory plastic clips that hold the aluminum dust cover in place. Once removed you can then remove the factory dust cover(the dust cover and plastic clips will not be reused on this install.)

STEP 2: Before installing the front shield we highly recommend using the anti-rattle tape provided in this kit.

With the radius of the front shield facing towards the front of the vehicle slip the shield into place aligning the front four holes with the factory clip holes that we removed the plastic clips from in step one.

STEP 3: Locate the 1/4” rivets (the larger of the two included in hardware kit) make sure the front four holes line up properly then using a heavy-duty 1/2” rivet gun insert and install the front 4 rivets into the existing holes.

STEP 4: (NOTE: The Installation of the rear rivets come with spacers to allow for proper clearance. To ensure the best fit with no rattle.use the spacers when securing the rear part of the front shield.)

Once the front four rivets are installed you can then use the predrilled holes in the plate as a guide to drill your holes on the vehicle.

Drill the remaining 3/16” holes. Using the spacers and longer rivets, install and check for clearance around the exhaust.

STEP 5: (NOTE: The Installation of the rear shield rivets are standard length.)

Drill out the 4 holes in the rear shield using the holes as guides. Install the remaining rivets and check for clearance.

Thanks for reading!
